QxV Sectional Door


High Performance

Durability and soaring energy costs continue to be a challenge in the loading dock industry. DL Manufacturing has come up with an affordable solution that eliminates air and light gaps in the QxV Flexible Sectional Dock Door. The key to our design is a rugged, flexible PVC panel with an R-value of R-22 which is why QxV surpasses the performance of other sectional dock doors.

This makes QxV an ideal solution for any overhead door or cold storage application.

QxV Features

High Performance

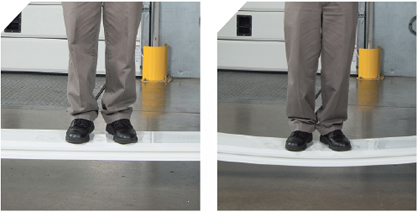

QxV’s flexible PVC panel resists damage from impact better than standard steel panels

Flexible Energy Saving Panels

QxV uses closed cell foam PVC panels with R-22

Side Compression Seals

Prevent air leakage at sides which makes QxV ideal for cold storage applications

Available in vertical lift, high lift and standard lift installation

Product Video


Product Data

  • Dock Door
    Panels: 3”thick, UV Inhibited, Weather Resistant PVC
    Insulation: Expanded Polystyrene Foam R-22
    Door sizes: Up to 14’ x 16’
    Panel Seals: D-Compression Seals
    Side Seals: Brush Seal
    Bottom Seals: Rubber with optional rubber/brush combination
    End Cap: Galvanized Metal with Zinc
    Plated Hinges Rollers: 3” 10-Ball Zinc (2″ available)
    Plated Rollers Track: 3” metal roller track (2″ available)
    Optional Lock: Offers intruder security Optional Cooler Door Package
  • Torsion Springs
    Spring Cycle: 15 K (standard)
    Cables: 5/32”- 7 x 19 galvanized steel
    Shaft: 1” keyed hollow shaft
    Bearings: 1” UCF Precision Flange Bearing
  • Counterweight – Vertical Type Only
    Counterweights: Round Bar Stock Single Side
    Cables: 5/32” – 7 x 19 galvanized steel
    Includes Cable Cop with safety cog
