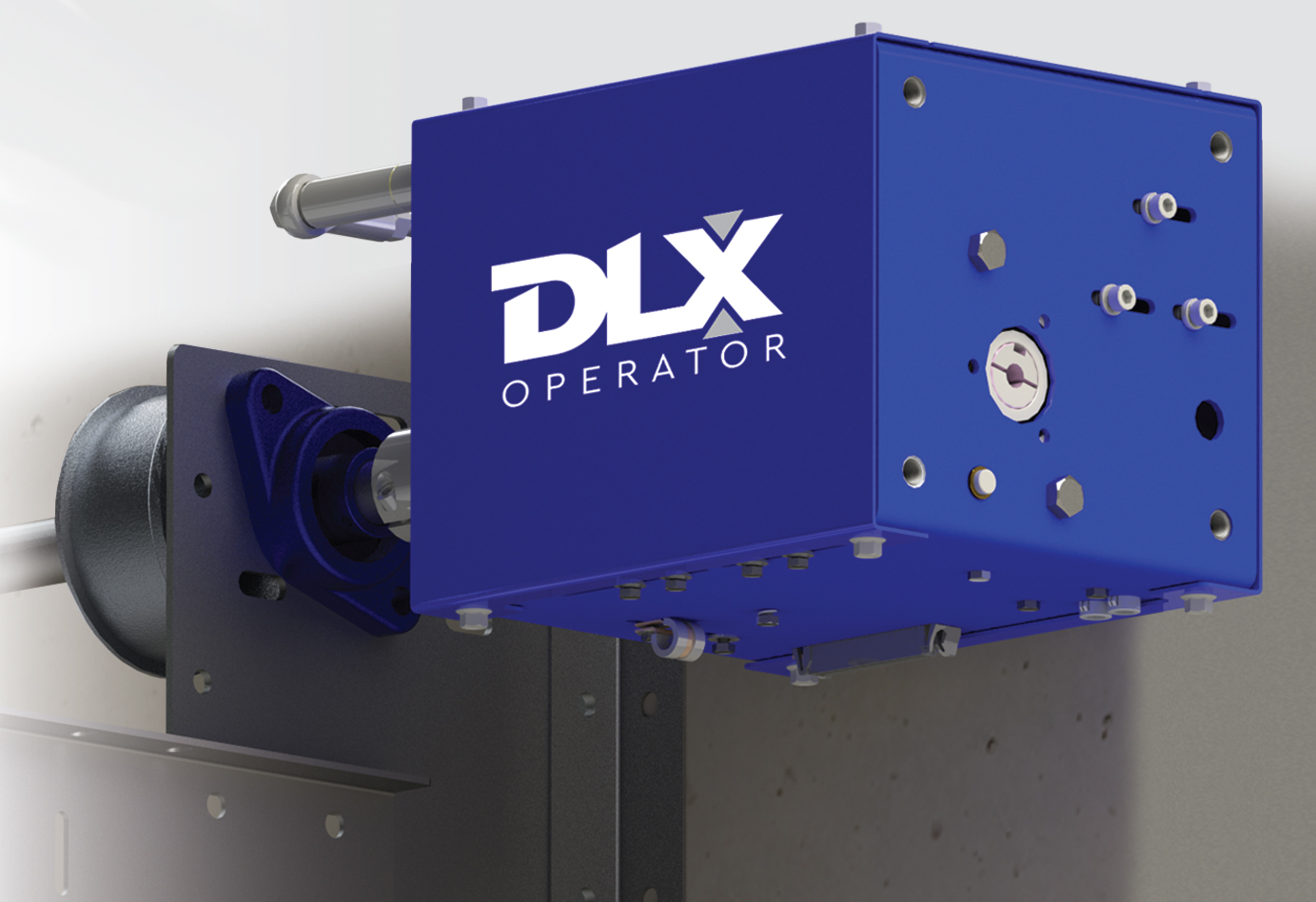

DLX Operator
DLX OperatorTM — Designed for
tomorrow’s loading dock!
tomorrow’s loading dock!
DLX OperatorTM Features:
- Improves ergonomics for the loading dock workers and installers
- Lightweight and low power – for easy installation, operation, and maintenance
- Simple to program and commission
- Sensorless limits – all programming done from user station
- No need to reset limits after power interruption or manual door use

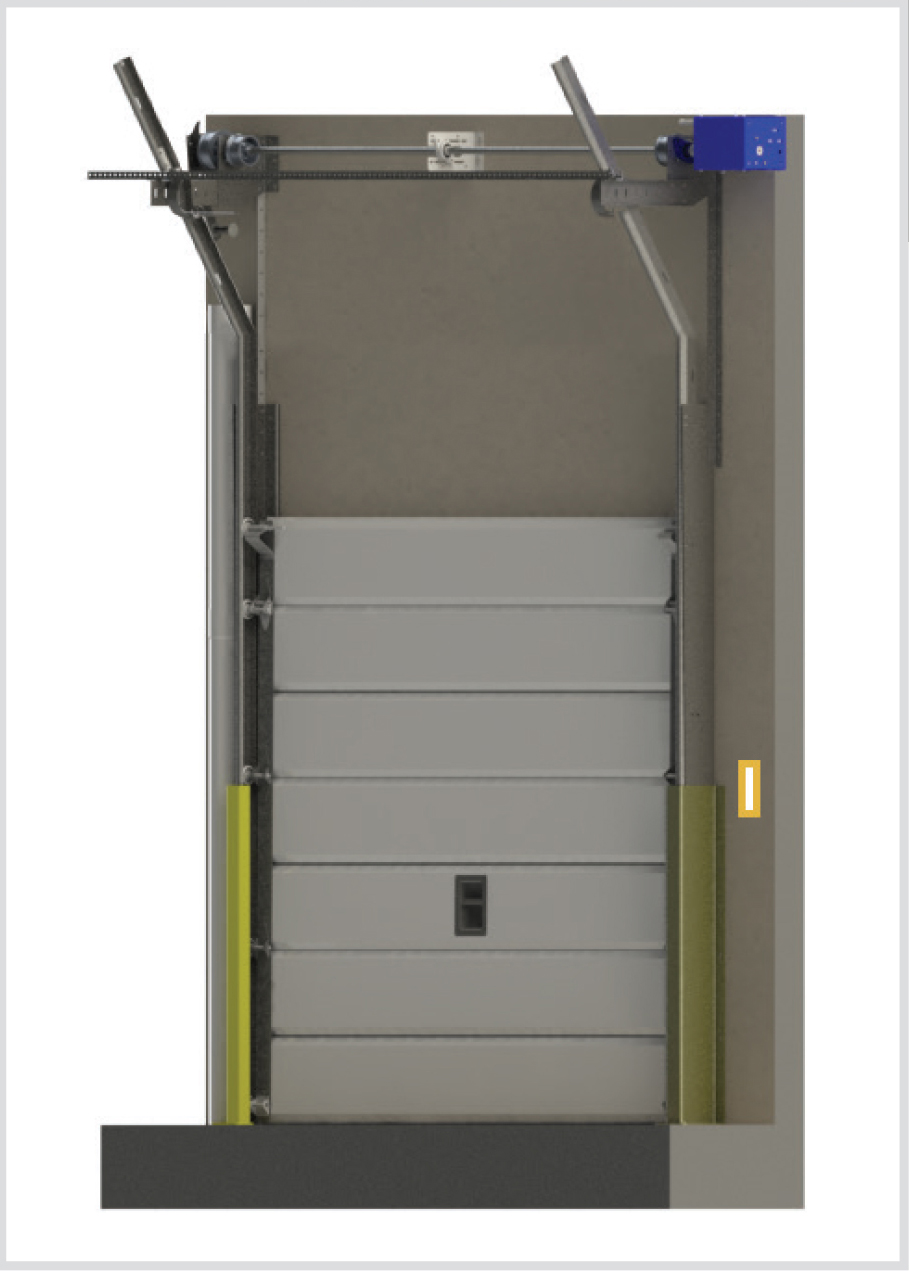

- Direct coupled to door jack shaft
- Integrates directly with door bearing brackets, no wall mounting required for most applications.
- Loss of power/function – open mechanical switch (pull cord) and run the door manually
- Maintenance friendly – simple diagnostics
- Swap unit in 5 minutes
- Integration capability with building management system (dry contact option)
- Dedicated Entrapment Protection circuit(s) available
DLX OperatorTM Specifications:
- Input is 120V-230V, 1Ph, 6A at control box
- Low-voltage connection (12V) out to operator
- Under 20 lbs
- Onboard troubleshooting/diagnostic system
- Dedicated Entrapment Protection circuit(s) available
