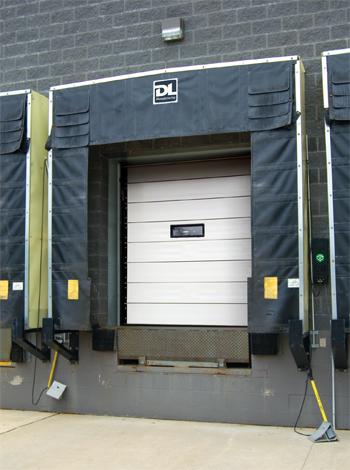

DL Rigid Truck Shelter


Rigid Truck Shelter- DL2000 Series

Rigid dock shelters are the most versatile solution because they will accommodate the widest range of vehicles. The DL rigid truck shelter 2000 Series provides full access to trailers, as the name implies these units create a shelter from inclement weather


  • Heavy-duty treated wood frame covered with translucent fiberglass (top and side frames) to allow natural light into the dock area.
  • 24” overall projection.
  • Coated polymer fabric face curtains have foam bead on inside edge which conforms to trailer for better seal.
  • Raked header prevents water collection on top.
  • Wear caps with guide stripe on bottom corners of face curtains absorb impact of lower trailer corners.
  • Wind cord prevents head curtain from blowing out of position. Three overlapping wear pleats in corners absorb impact of trailer edges.
  • Foam-filled draft pads inside lower corners prevent air from entering; “NO STEP” safety logo permanently affixed.
  • Angle trim secures face and header curtains to shelter frame.
  • Heavy-duty steel shelter support.


    • Tapered Verticals: To accommodate sloped driveways.
    • Common-member Unit: For door openings too close together to accommodate two individual shelters.
    • False Header: For extra high doors.
    • 30” overall projection.
    • 36” overall projection.
